JBL SRX 712 Speaker
Description

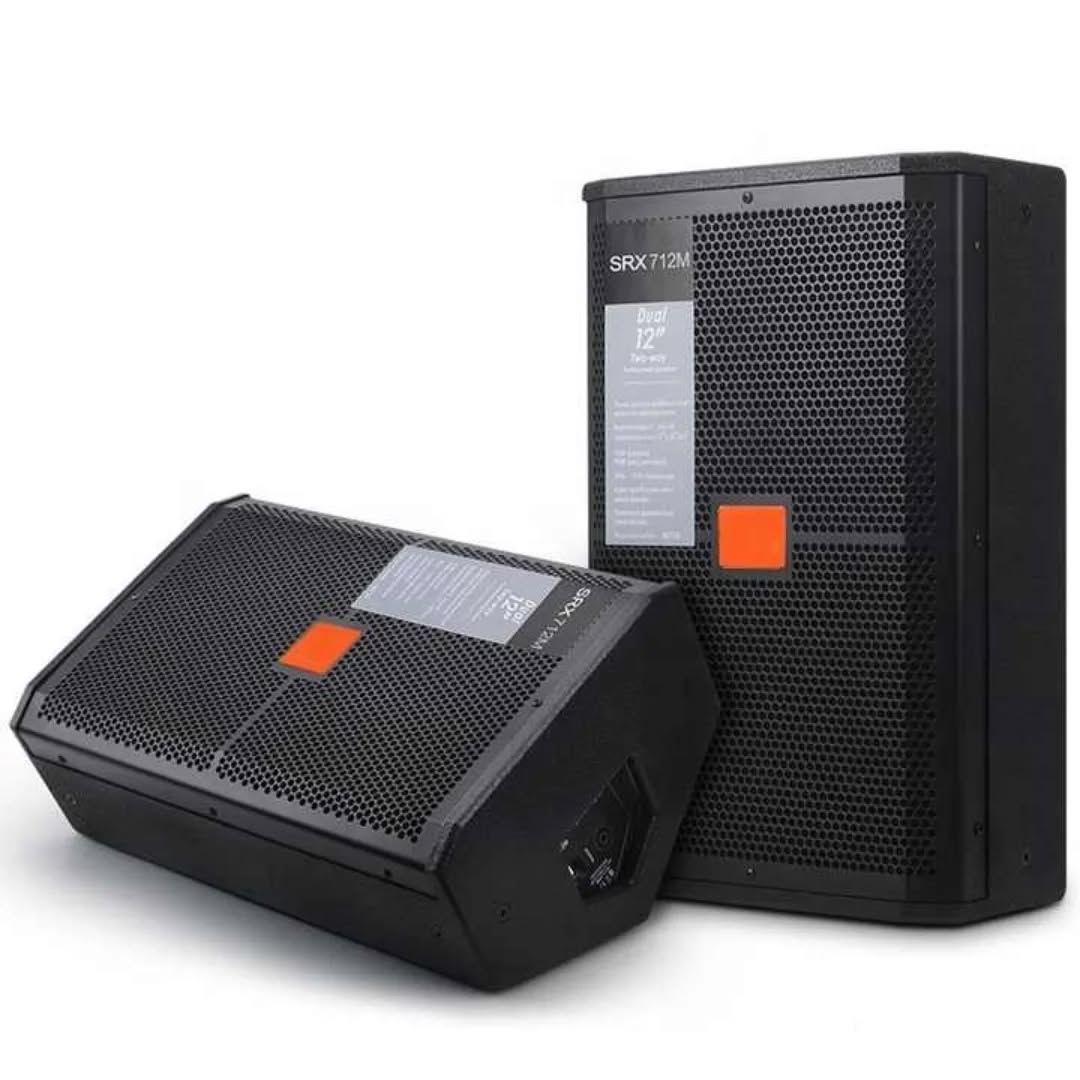

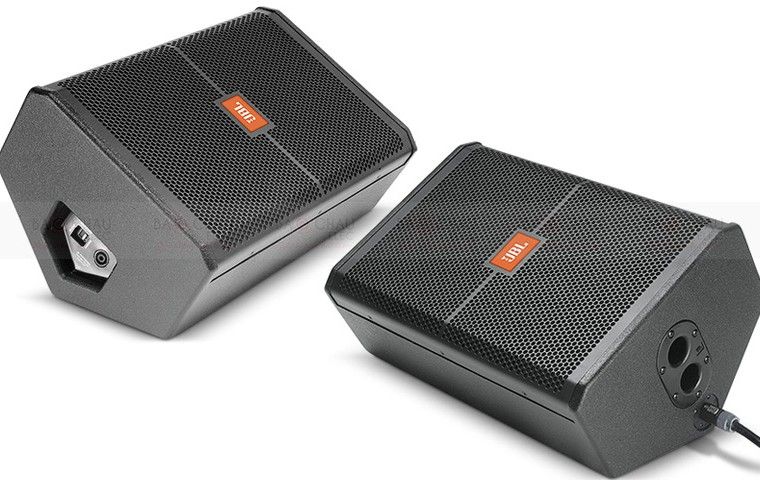

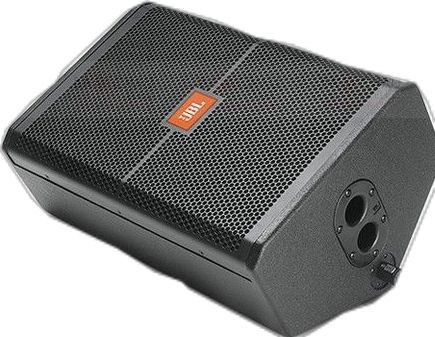

JBL stage monitor Speaker SRX712M Details:
- The jbl stage monitor SRX712M was designed with one goal – build the lightest, smallest, loudest, clearest stage monitor possible while delivering strikingly professional appearance.
The jbl 12 monitor speaker SRX712M can also do double duty as a utility speaker. For use on a tripod or over a subwoofer, JBL’s dual angle pole mount is included. This feature allows the speaker to be mounted in a vertical position or with a 10° down tilt for optimum audience coverage. - Compact and low-profile for minimal obstruction of audience sight-lines. Its unobtrusive design allows sound to reach its intended audience while staying out of sight.
- 90°x 50° nominal coverage.
- Bi-amplified or full-range passive operation.
- Dual-angle pole socket for applications requiring tripod mounting.
- Optional yoke available for trussmounted or suspended applications.
- Neodymium magnet Differential Drive® woofer for high-power capacity and very light-weight.
- 3 inch (diaphragm) neodymium magnet compression driver.
KSh 20,000 KSh 22,000
SPECIFICATIONS:
- System Type:12″, two-way, bass-reflex, stage-monitor/ utility loudspeaker
- Frequency Range (-10 dB):70 Hz – 20 kHz
- Frequency Response ($3 dB):83 Hz – 18 kHz
- Coverage Pattern:50° x 90° nominal (Monitor position)
- Crossover Modes:Bi-amp/ passive, externally switchable
- Crossover Frequency:1.2 KHz
- Power Rating (Continuousl / Program / Peak)
- Passive: 800 W / 1,600 W/ 3,200 W
- Bi-amp LF:800 W / 1600 W / 3200 W
- Bi-amp HF:75 W / 150 W / 300 W
- Maximum SPL2:131 dB SPL peak
- System Sensitivity (1w @ 1m):96 dB SPL (passive mode)
- LF Driver:1 x JBL 2262H 305 mm (12 in) Differential Drive woofer
- HF Driver:1 x JBL 2431H 75 mm (3 in) voice coil, neodymium compression driver
- Nominal Impedance:Passive: 8 ohms
- Bi-amp LF:8 ohms
- Bi-amp HF:8 ohms
- Active Tunings:dbx DriveRack, all models.
- Enclosure:Symmetrical stage monitor, 15 mm, 11-ply birch plywood.
- Suspension / Mounting:Dual-angle (0° or -10°), 35mm pole socket
- 2 × M10 fittings for optional SRX712M-YK yoke
- Transport:Integrated handle / input cup
- Finish:Black DuraFlex finish
- Grille:Powder coated, black, 16-gauge perforated steel with
- Acoustical transparent charcoal foam backing.
- Input Connectors:Neutrik® Speakon® NL-4 (x2), one on each end
- Dimensions (H x W x D):349 mm x 546 mm x (13.75 in x 21.5 in x 10.25 in)
- Net Weight:15 kg (33 lb)
Based on 0 reviews
Be the first to review “JBL SRX 712 Speaker”
